BISCUIT FILLING decoration chocolate line(MF-BF)

UPGRADING is one of the easiest ways to innovate successfully.

Only biscuit filling is not enough. Decoration can make the chocolate more competitive.

Our technology and creativity can upgrade the biscuit filling chocolate with decoration. Design more shapes and innovations, chocolate will sell better.

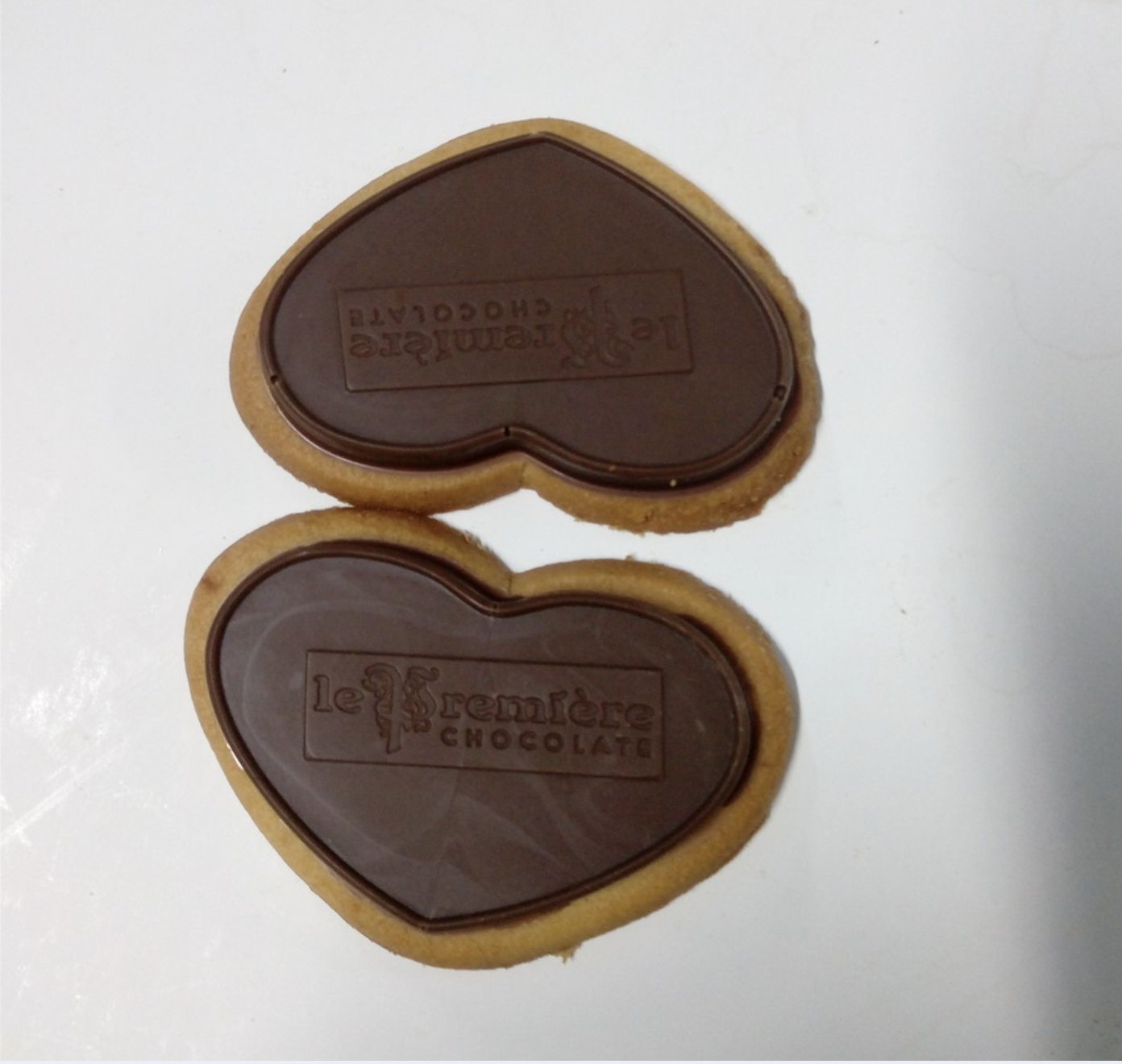

Sweet chocolate, delicious biscuits, more beautiful shapes.

■ Wafer filling or Biscuit filling of chocolate can improve the taste.

■ Decoration can make the chocolate more competitive.

■ Feeding Wafer or Biscuit technology is used in g&d chocolate factory.

■ g&d has more feeding solutions for special wafer or biscuit.

Do you want to know how to make this DECORATION biscuit filling chocolate?

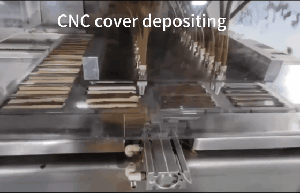

Decorating 2 colors by g&d Light CNC chocolate depositor

Biscuit feeding machine

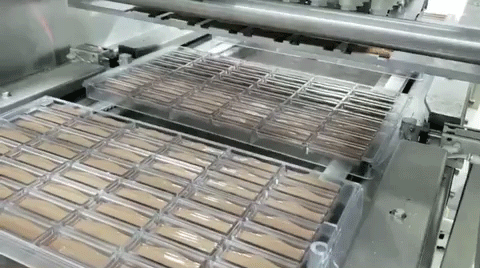

Demolding & Traying

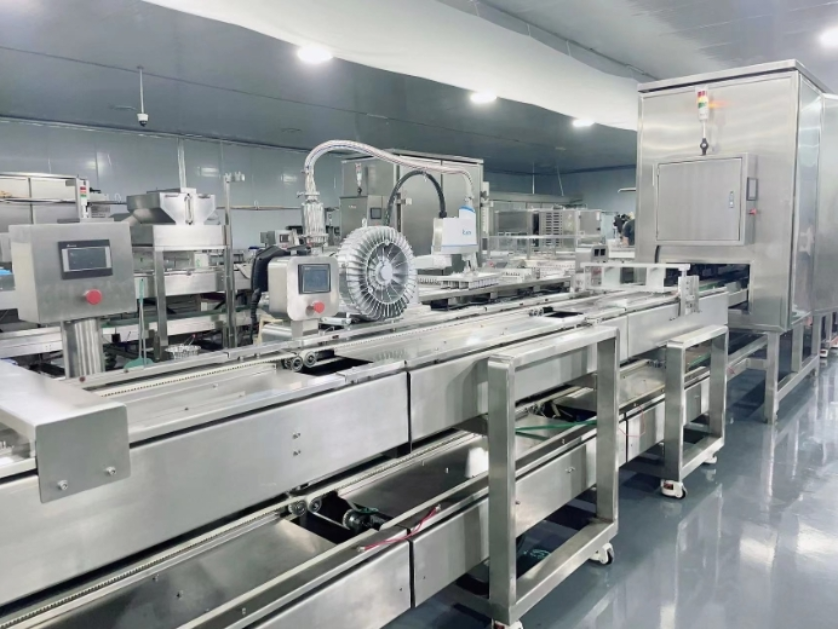

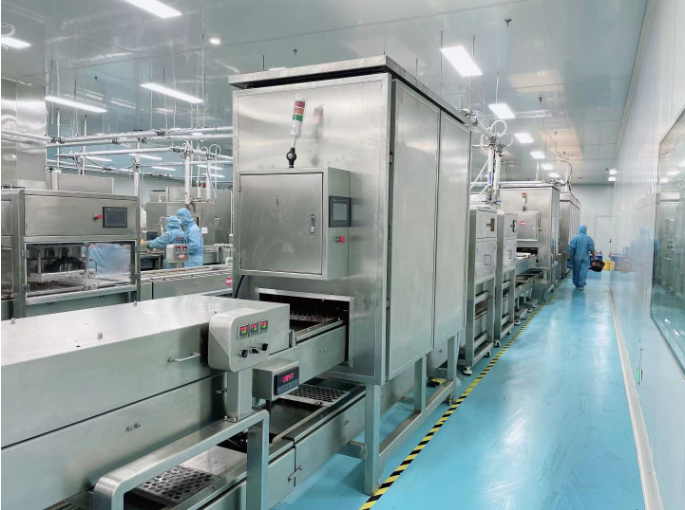

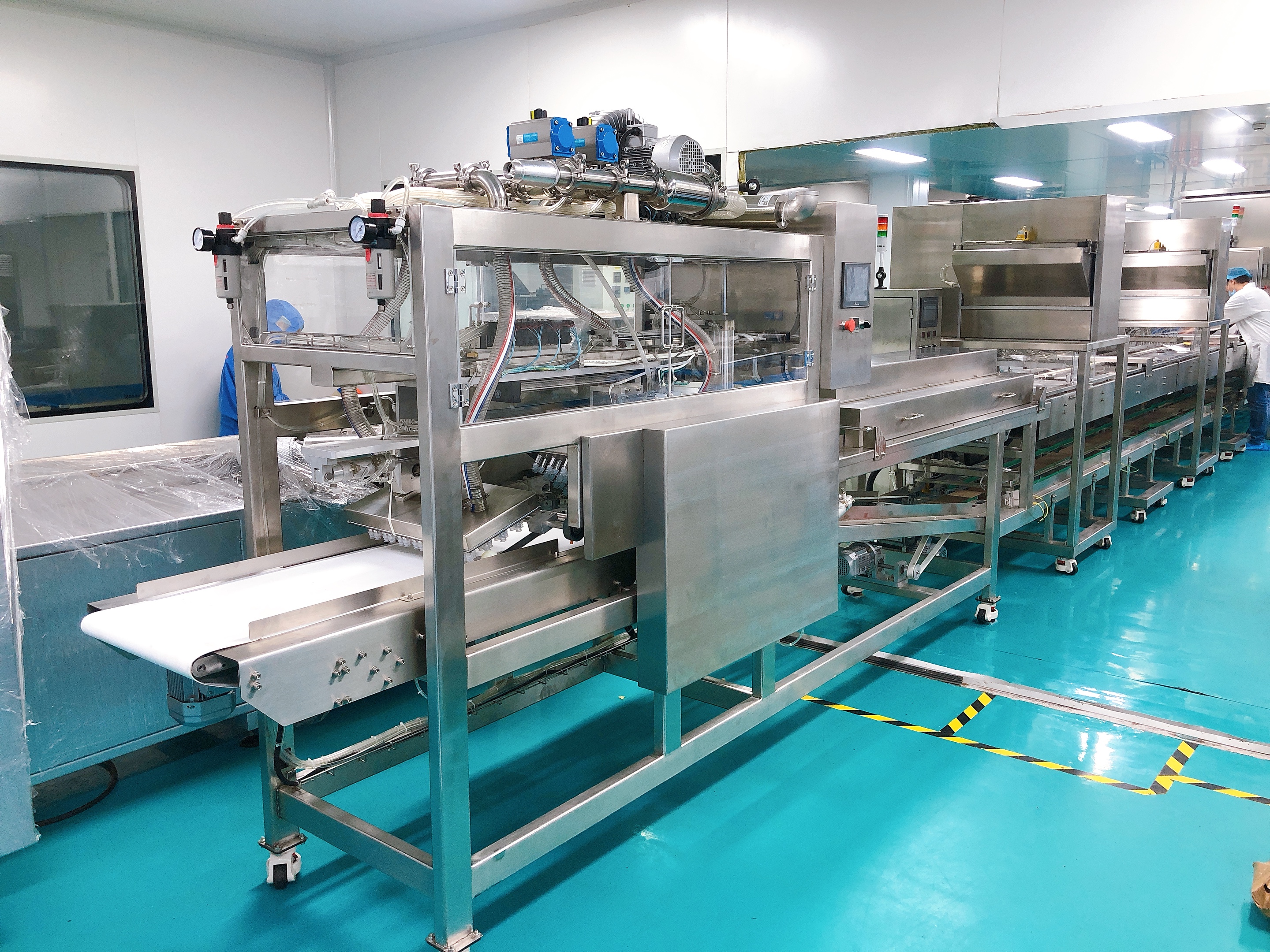

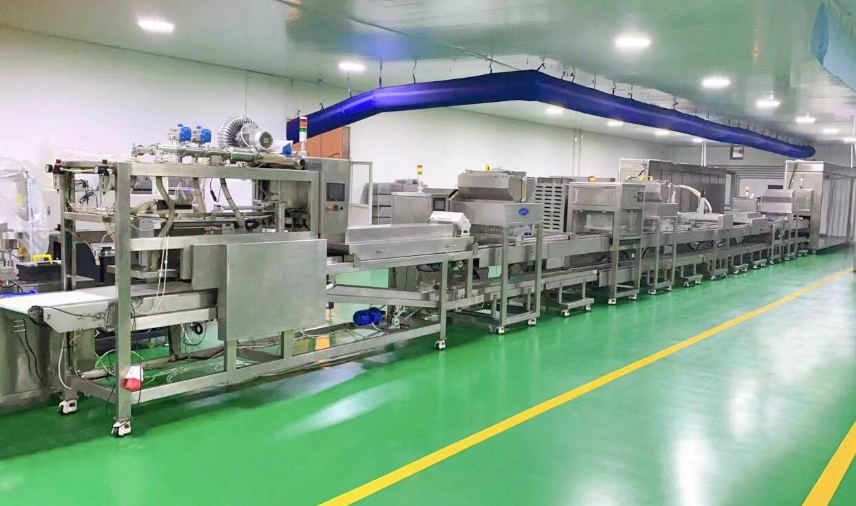

Yes, it is a modular production line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.

Our technical team is the originator and developer of this technology.

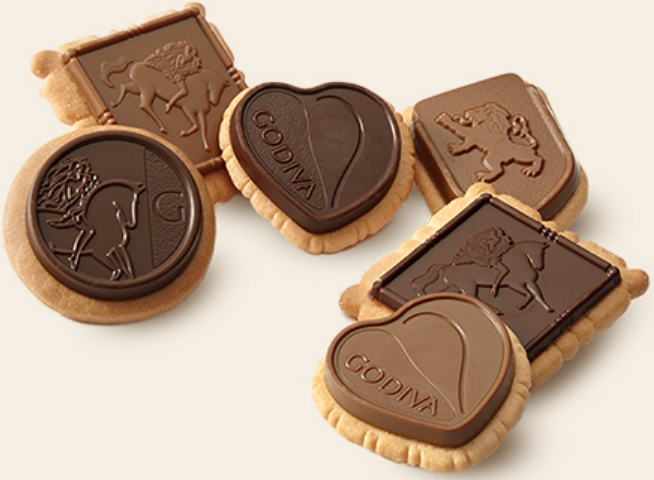

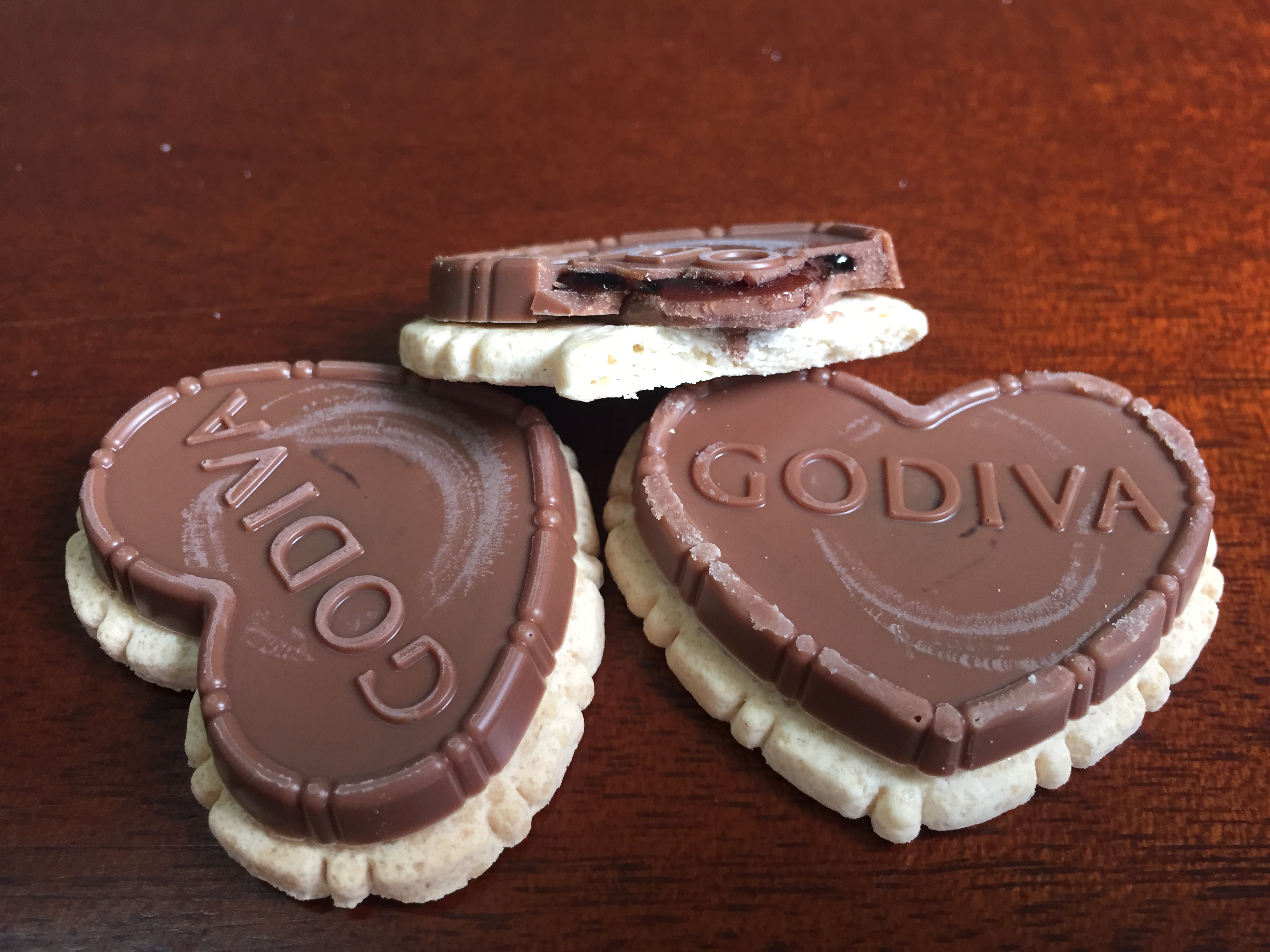

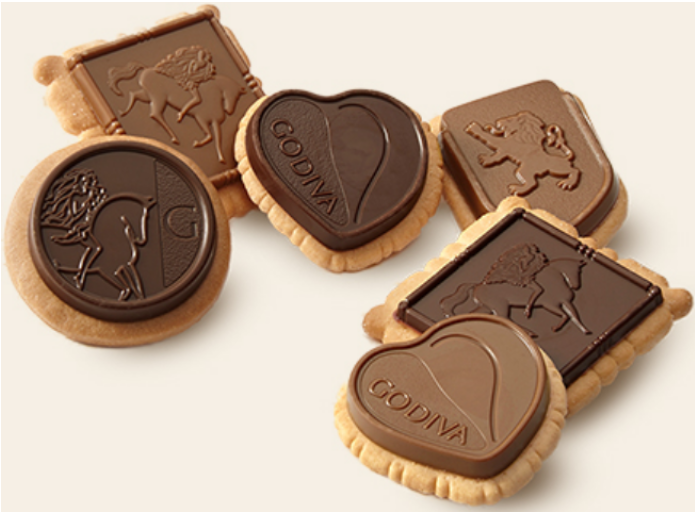

Similar products of Mars, Hershey and Godiva have been produced by this series lines.

Let's take a look at the special features of this production line

■ It is “Linear Modular Design’’. The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC decoration technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable using cost for users.

■ Automatic biscuit alinement and feeding, automatic demolding and traying make production more automatically.

■ The rich functional modules support the future development of users and enables them to  expand the required functions and  capacity flexibly.

■ Advanced design and mature technology make installation and debugging very easy, users can easily handle equipment installation and production.

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min

Let's take a look at what equipment is made up of the production line and what are the characteristics of these equipment?

Multi-function demolding machine

■ Multi-function: vacuum demolding, mold tapping and automatic packing to meet the    demolding needs of different products of users.

■ Fast demolding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

Multi-function decoration depositor

■ Compared with 150kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

■ ;The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Decoration speed is normally 6-12 mold/min, it varies according to the different shapes and decoration colors.

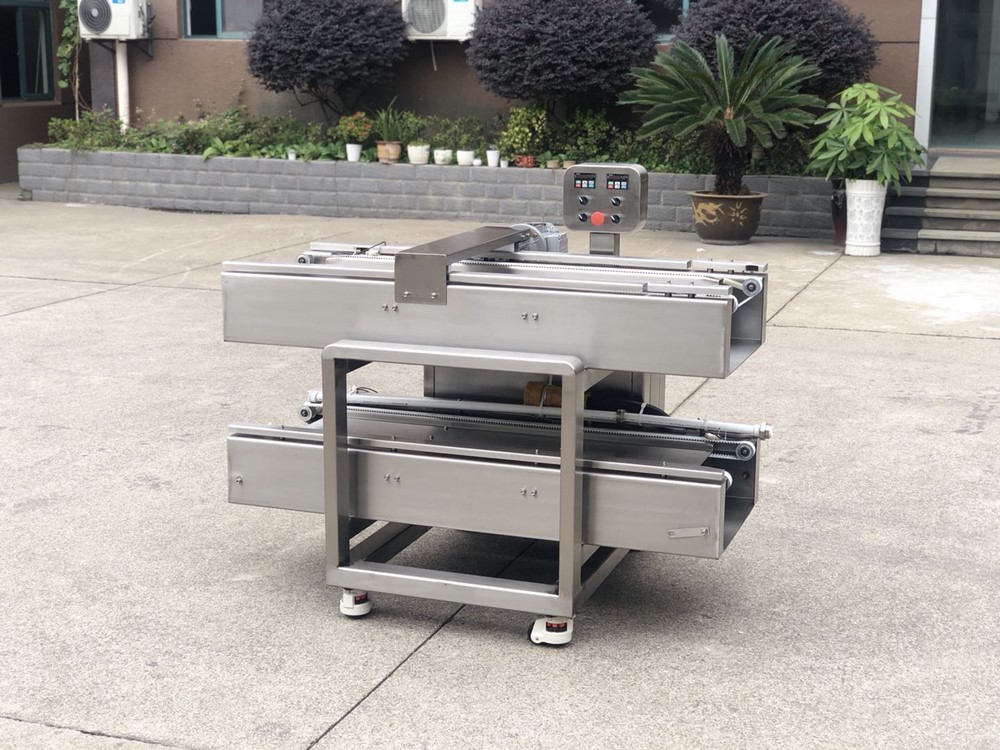

Vibration machine

■ Vibration and swing, two ways for choice to balance material according to different material.

Pre cooling tunnel

■ Using lifting technology, customer can choose pre-cooling or pass it directly if the product do not need pre-cooling；

■ All stainless steel material, 48 molds can be accommodated, precooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

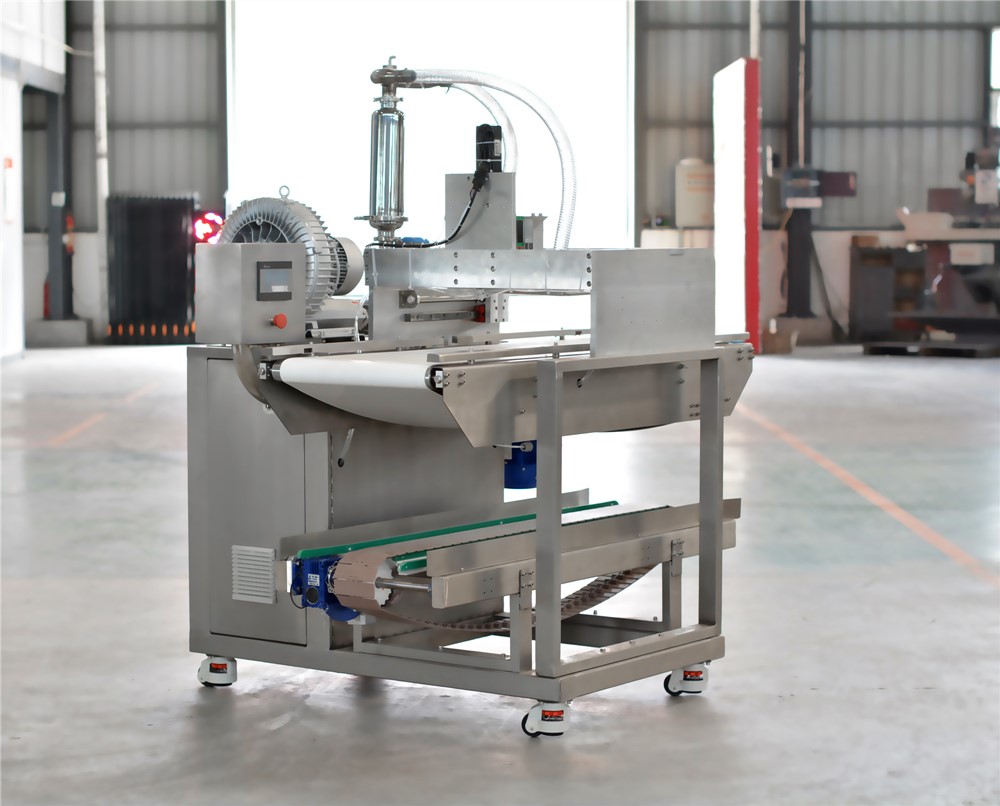

Biscuit Feeding Machine

■ Biscuit Feeding by vacuum.

■ Flexible design, the machine can be adapted to different biscuit feeding.

■ biscuit feeding success rate is high and speed is 5-6 mold/min, we can also provide bigger capacity solution 10-12 mold/min.

Energy saving final cooling tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

You must want to know what else products can be made on this line?

One shot, decoration, one shot & decoration chocolate can be made by this line, only need change another depositing plate and demolding plate.

Our modular technology and innovation ability will keep chocolate line advanced for many years.

For more information about g&d, or you want to visit g&d chocolate research factory on line,please contact our export manager.
