BISCUIT STICK decoration chocolate line (MF-B8)

BISCUIT STICK decoration chocolate line (MF-B8)
BISCUIT STICK decoration chocolate line (MF-B8)



☑ Biscuit chocolate production line & biscuit chocolate making machine will bring more products and market shares for users. Moreover, it is also biscuit chocolate making machine or biscuit chocolate production line which can be expanded freely to meet users’ chocolate innovation needs in 20 years or more.

UPGRADING is one of the easiest ways to innovate successfully.

What is BISCUIT STICK DECORATION CHOCOLATE? Let’s have a look together
                                   Famous baking brand in northern Japan—— Bourbon biscuit stick cartoon chocolate

g&d's technologies and creativities can upgrade the biscuit stick chocolate as following.

Children love them so much.

Sweet chocolate, delicious biscuits, beautiful cartoon shapes.

Product and technology features

■ Biscuit stick is much special, Delicious and More safer for children.

■ Biscuit weights 30%, help users reduce costs.

■ 1-3 different shapes can be made in one mold.

■ Our product design team provides customers with more styling and creativity service.

Do you want to know how to make this delicious biscuit chocolate?

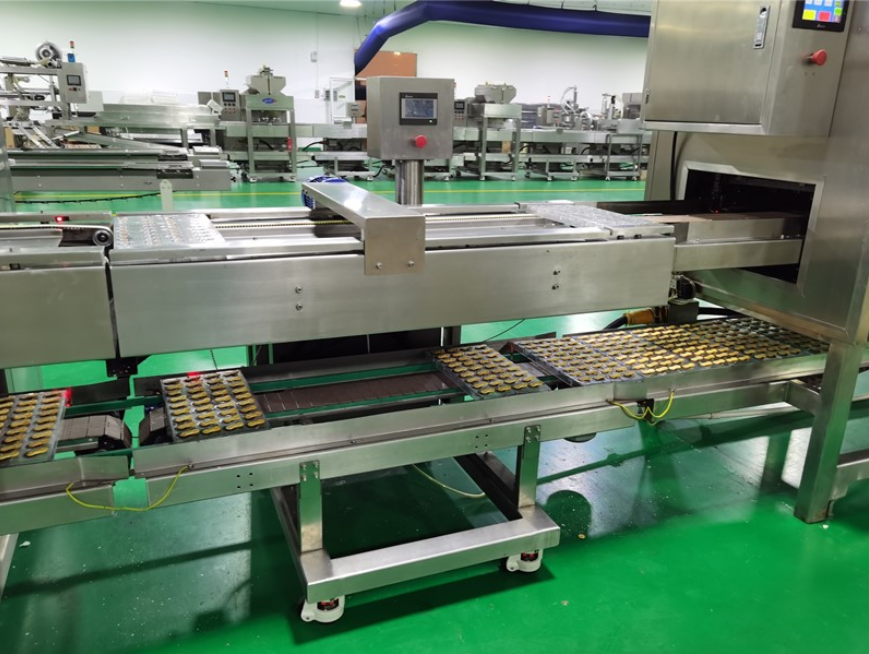

The lovely chocolate is made on this line.

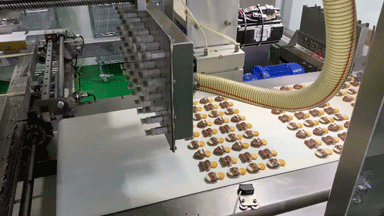

Decorating 2 colors by g&d Light CNC chocolate depositor

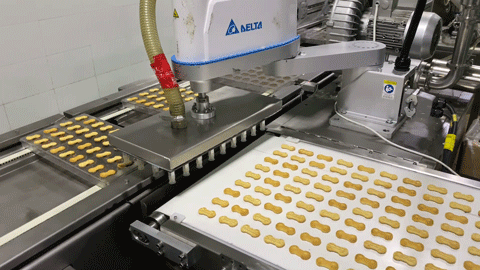

Feeding biscuit by Robot Arm

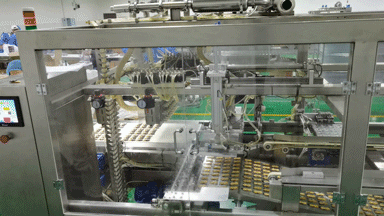

Demolding & Traying

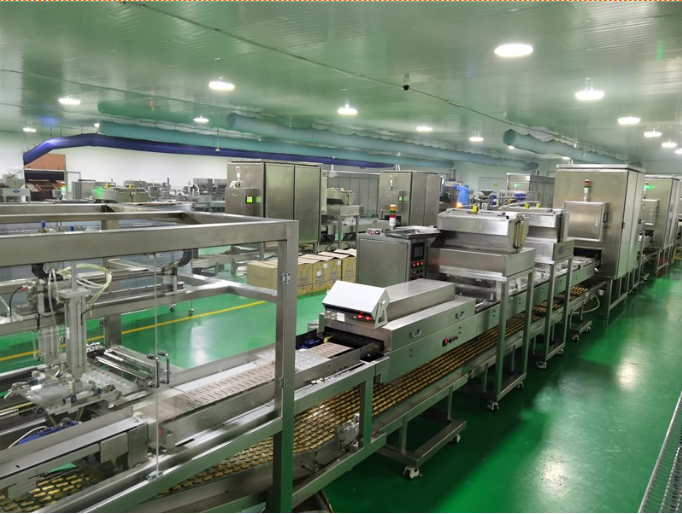

This biscuit chocolate production line looks some different, right?

Yes, it is a modular production line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.

Our technical team is the originator and developer of this technology.

Similar products of Mars, Hershey and Godiva have been produced by this series lines.

Let's take a look at the special features of this production line

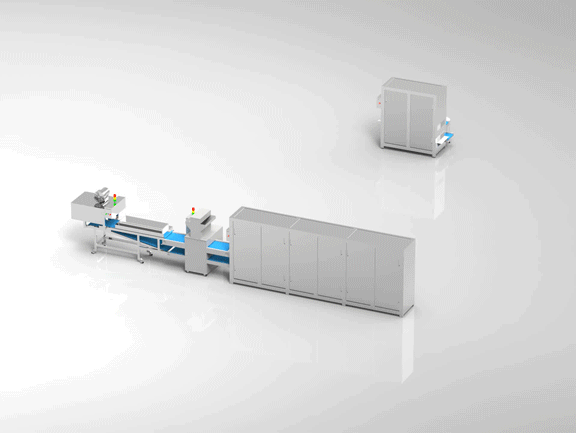

■ It is Linear Modular Design’’. The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC decoration technology, and the energy consumption is only about 65% of the heav CNC production line, which saves considerable use cost for users.

■ Automatic biscuit alinement and feeding, automatic demolding and packing make production more automatically.

■ The rich functional modules support the future development of users and enables them to flexibly expand the required functions and capacity.

■ Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production;

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min (according different colors and shapes, 36pcs in a mold,6gram)

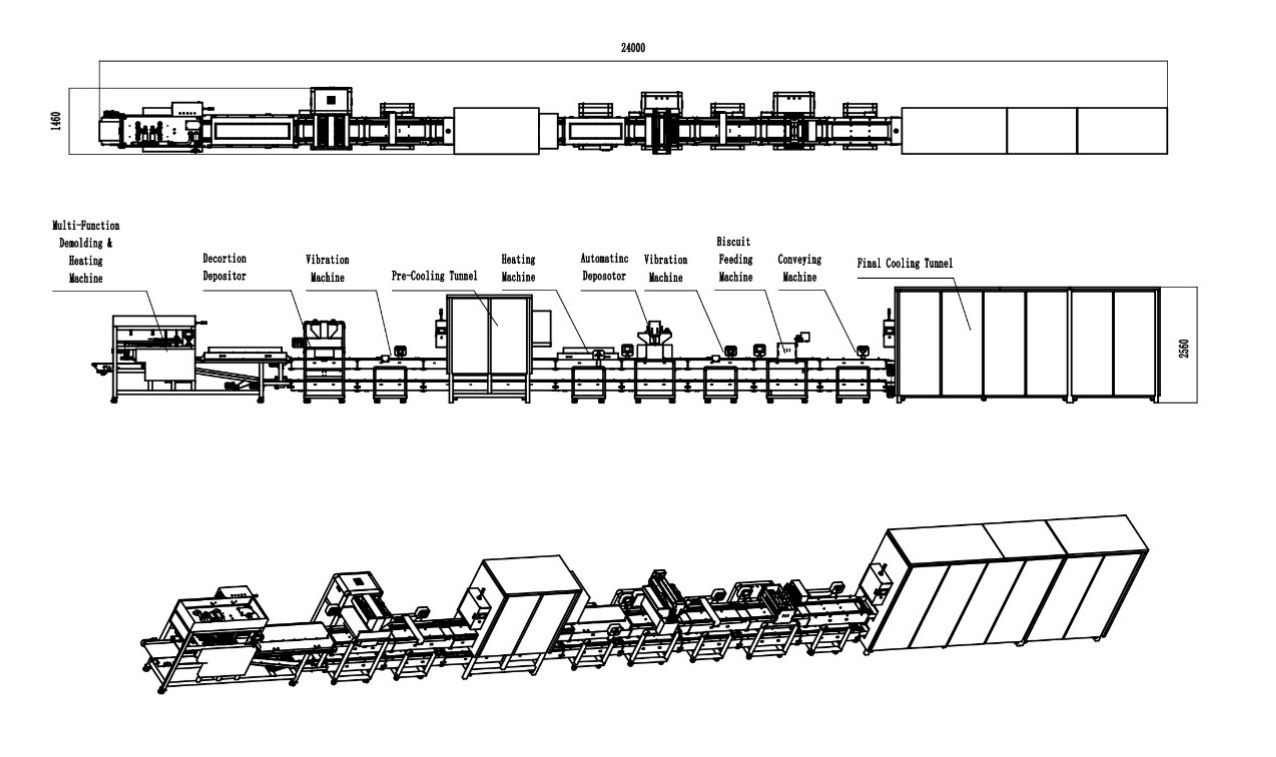

Let's take a look at what equipment is made up of the production line and what are the characteristics of these equipment?

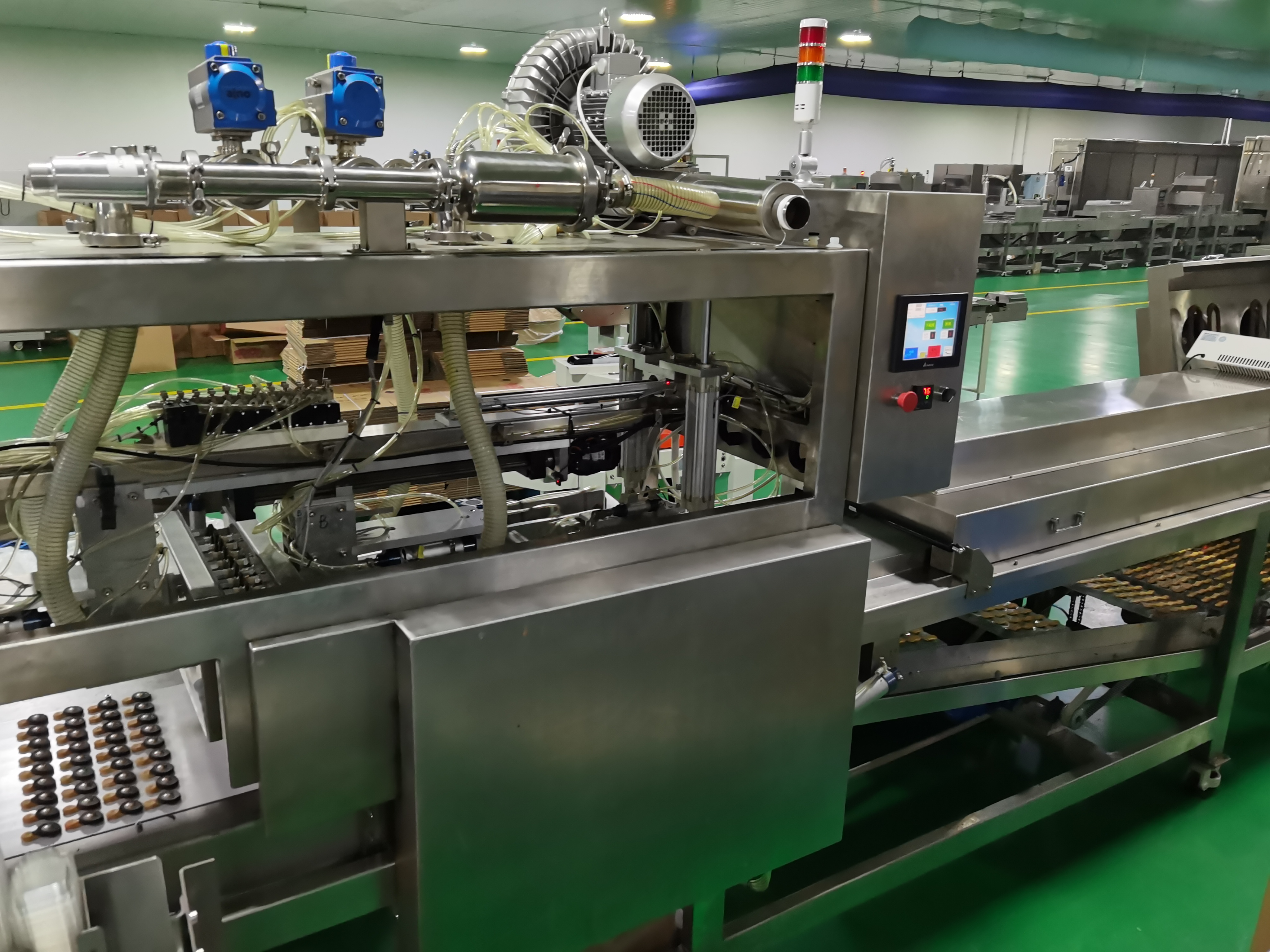

Multi-function demolding machine

■ Multi-function: vacuum demolding, mold tapping and automatic packing to meet the demolding needs of different products of users.

■ Fast demolding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

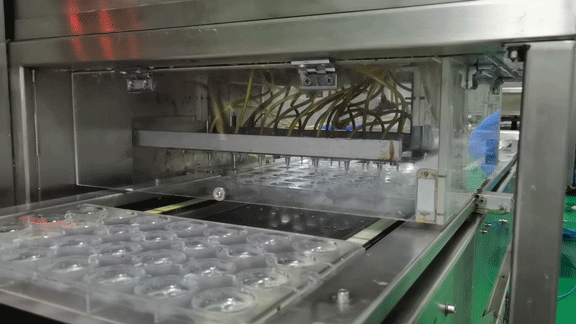

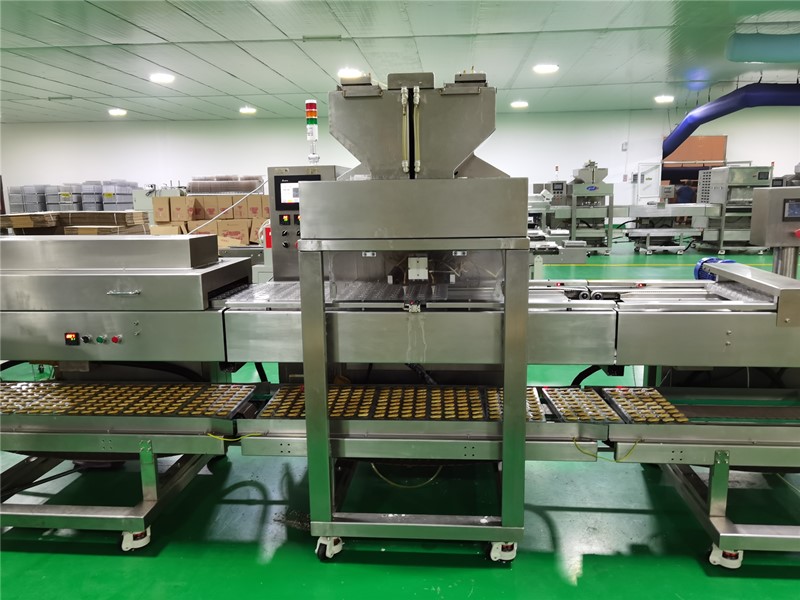

Multi-function decoration depositor

■ Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

■ The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Decoration speed is normally 6-12 mold/min, it varies according to the different shapes and decoration colors.

Vibration machine

■ Vibration and swing, two ways for choice to balance material according to different material.

Pre cooling tunnel

 Using lifting technology, customer can choose pre-cooling or pass it directly if the product do not need pre-cooling;

■ All stainless steel material, 48 molds can be accommodated, precooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

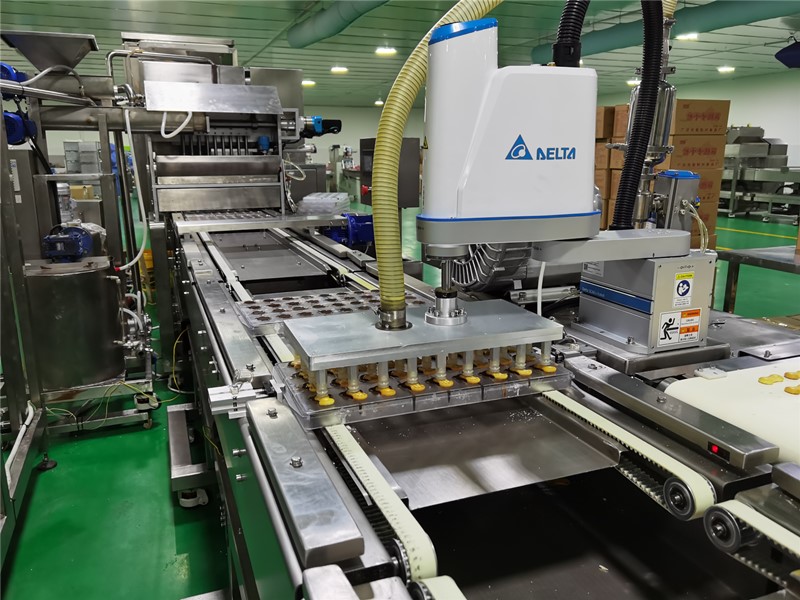

Robot Arm Feeding Biscuit

 Aline biscuit and feed biscuit automatically;

■ Flexible design,  the machine can be adapted to different biscuit feeding;

■ Biscuit feeding success rate is high and speed is fast,6-8 mold/min, we can also provide bigger capacity solution.

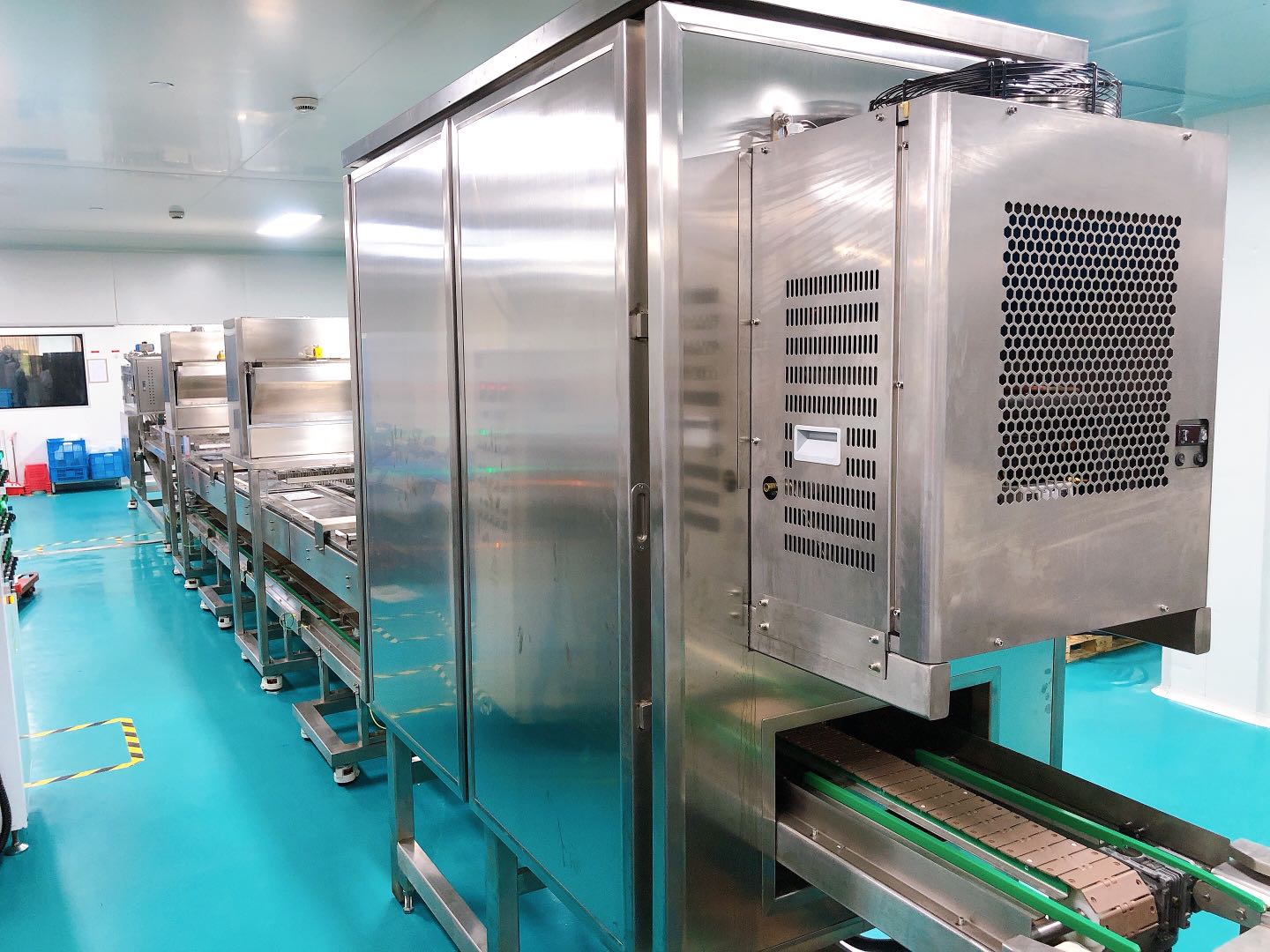

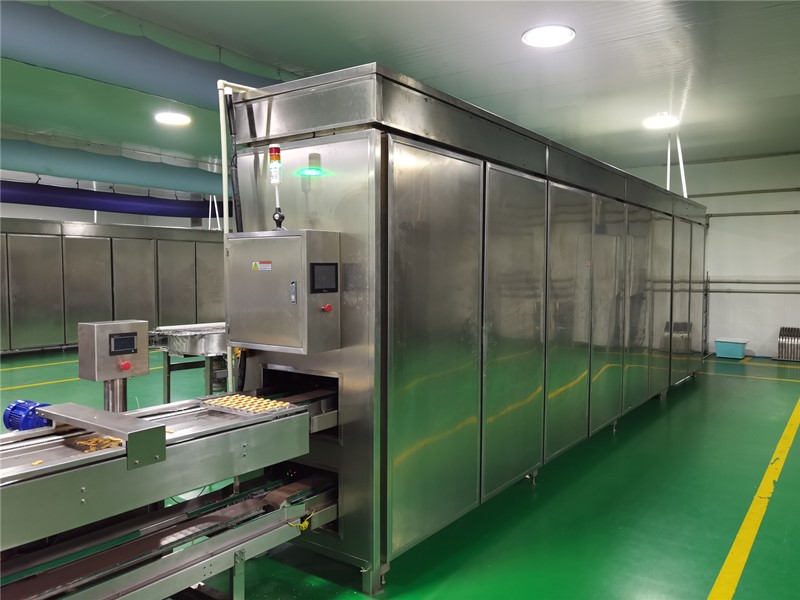

Energy saving final cooling tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/m, excellent refrigeration and energy saving.

No. Capacity
Products quantity
1 5-6 25.9X1.46X2.56    42.6 36 1-3
2 10-12 30.4X1.46X2.56    53.7 36 1-3

You must want to know what else products can be made on this line?

One shot, decoration, one shot & decoration chocolate can be made by this line only need change another depositing plate and demolding plate.

Decoration & one shot,2 sets decoration depositors are needed to be equipped for this line

We also have more multi-functional modular machines to help users realize the desired productThese machines can easily enter the existing production line; Yes, this production line will be your product innovation platform, And our technology and innovation ability will keep the production line advanced.

For more information about the production line, or you want to visit the production process on line. Please contact our export manager.
