Max-mixture Chocolate Multi-function Production Lines

Chocolate Mixture Decoration One shot multi-function line(MF-M5)

Chocolate Mixture Decoration One shot multi-function line(MF-M5)
Chocolate Mixture Decoration One shot multi-function line(MF-M5)
Chocolate Mixture Decoration One shot multi-function line(MF-M5)

Description

Reviews

☑ Nut depositor for chocolate with inclusions will bring more products and market shares for users. Moreover, it is also crispy chocolate bar making machine or mixture chocolate bar depositing line which can be expanded freely to meet users’ chocolate innovation needs in 20 years or more.

Isn't it more attractive to you with different decoration elements for crispy chocolate?

What type of chocolate is this line producing?

How about this inclusion chocolate with soft filling?

Mixture Chocolate Ice-Cream/Lollipop

We Upgrade the product with technology & creativity, various inclusions and higher inclusions percentage make the taste diverse.

Let's upgrade it with your imagination!

 More decoration looks more attractive.

 With center fillings. There are more possibilities.

 Higher nuts inclusion percentage makes the chocolate more crunchy.

 Different shape of images on chocolate face, children love it!

Let's check it out how these delicious chocolates are produced?

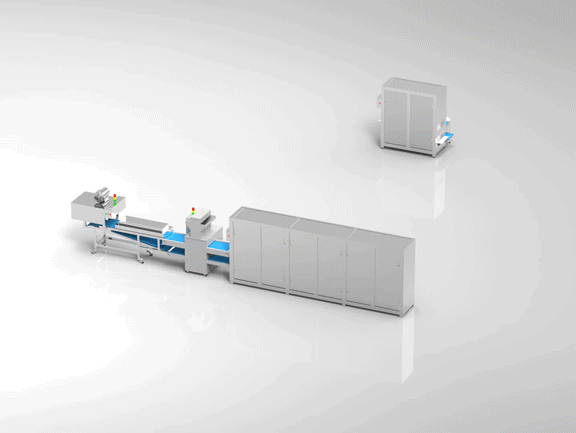

Can you tell what's different from the traditional line?

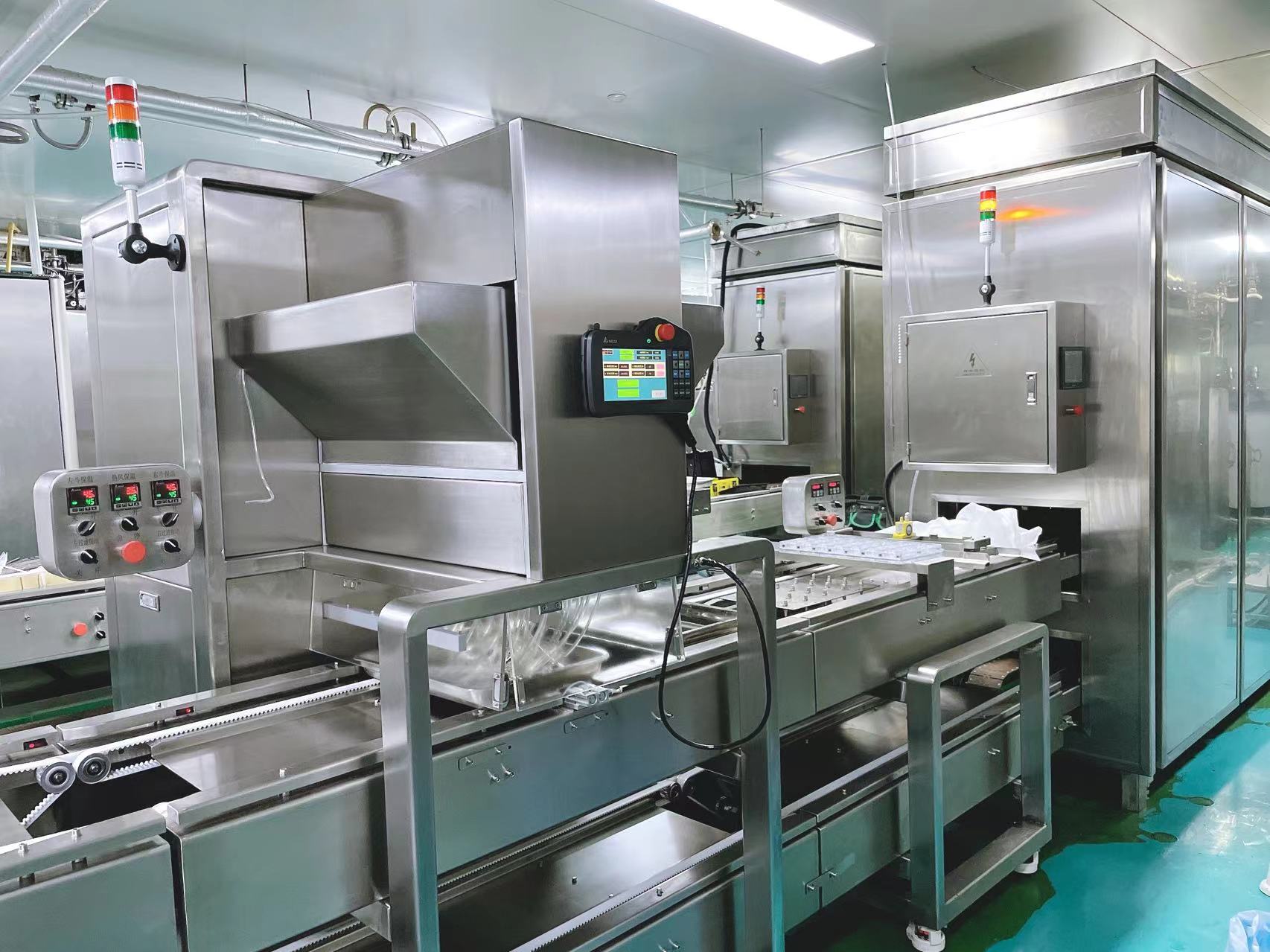

As you can see there is no electrical and air connection on the top of the Depositor. Although each machine is stand-alone unit, but the electricity and air of each machine can be connected to the adjacent machine.

So it can be combined flexibly as per your requirements to bigger capacity or more functions.

Our technical team is the originator and developer of this technology

Some products with different inclusions from Hershey’s, Mars, Godiva also produced by this line.

Let's take a look at the special features of this line:

■ Fast - Linear Modular design, the amazing part of this design is that it can adapt almost all different users requirements

■ Space-Saving Only need 50% workshop space of Ring-like Modular line. Bigger capacity in same workshop.

■ Upgradability More modules developed every year. All the line can be upgraded to more functions and higher capacity.

■ “High efficient”Advanced design, mature technology make the installation and commissioning very easy. User can easily handle it and quickly run the production.

Let's take a look at the specific equipment of this production line

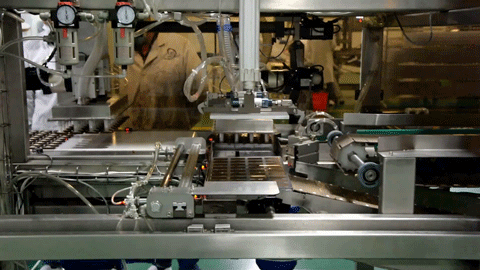

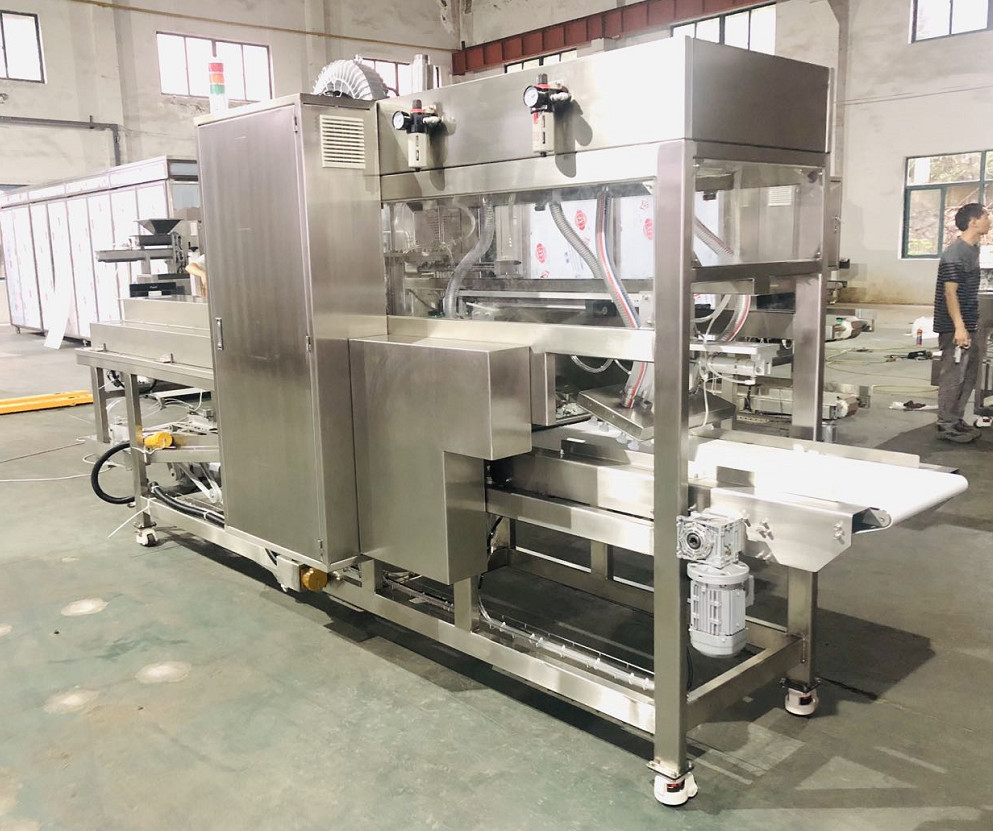

Multi-function pre-heating and demolding machine

 Multi-function. Including Vacuum Demolding, Knock Demolding and Automatic Boxing to meet users different requirements.

 Fast Speed. Maximum 14 mold/min. If the speed still not enough, there are bigger capacity demolding solutions.

 Including heating function. Precise temperature control, sufficient hot air circulation, flexible parameter setting.

 Decoration accuracy :0.05 g-0.08g (chocolate material fineness  below 25 um);

 Energy conservation and environment protection:environmental protection  and energy saving more than 50%

 No leakage design:  Adopt innovative design, no chocolate mass leakage out of piston;

 ;One shot function:It is is compatible with one shot function,both one shot and decoration function can be realize in the depositor.

 Heat preservation:  Both the hopper and the deposng plate have good heat preservation;

 Operating system: Friendly, instructional  interface is easy to learn and operate;

■ 5 servos, double syste of one shot and decoration;

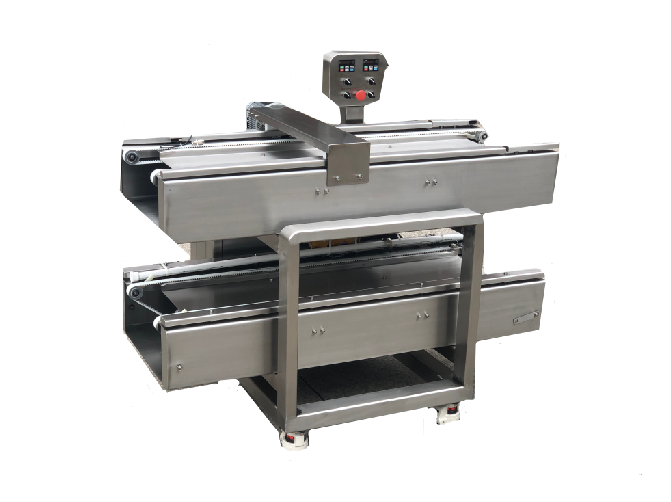

Vibration Machine

■ Vibration & Swing mode balancing as per material status;

■ Vibration and swing frequency is adjustable and controlled by converter

Pre-cooling Tunnel

■ Cooling system is air-cooled, no need to connect pipeling, free movement and combination;

■ Two operation modes, if the product no need precooling in the future, molds can go through directly from the bottom of pre-cooler, improve production efficiency;

■ The cooler adopts integrated design, saving energy and reducing consumption;

Heating Machine

■ Mold heating temperature is adjustable, temperature control accuracy is 0.1 degrees ;

■ The upper conveyor is designed for synchronous belt without running deviation;

■ The lower conveying is chain plate design, easy to change with a low cost;

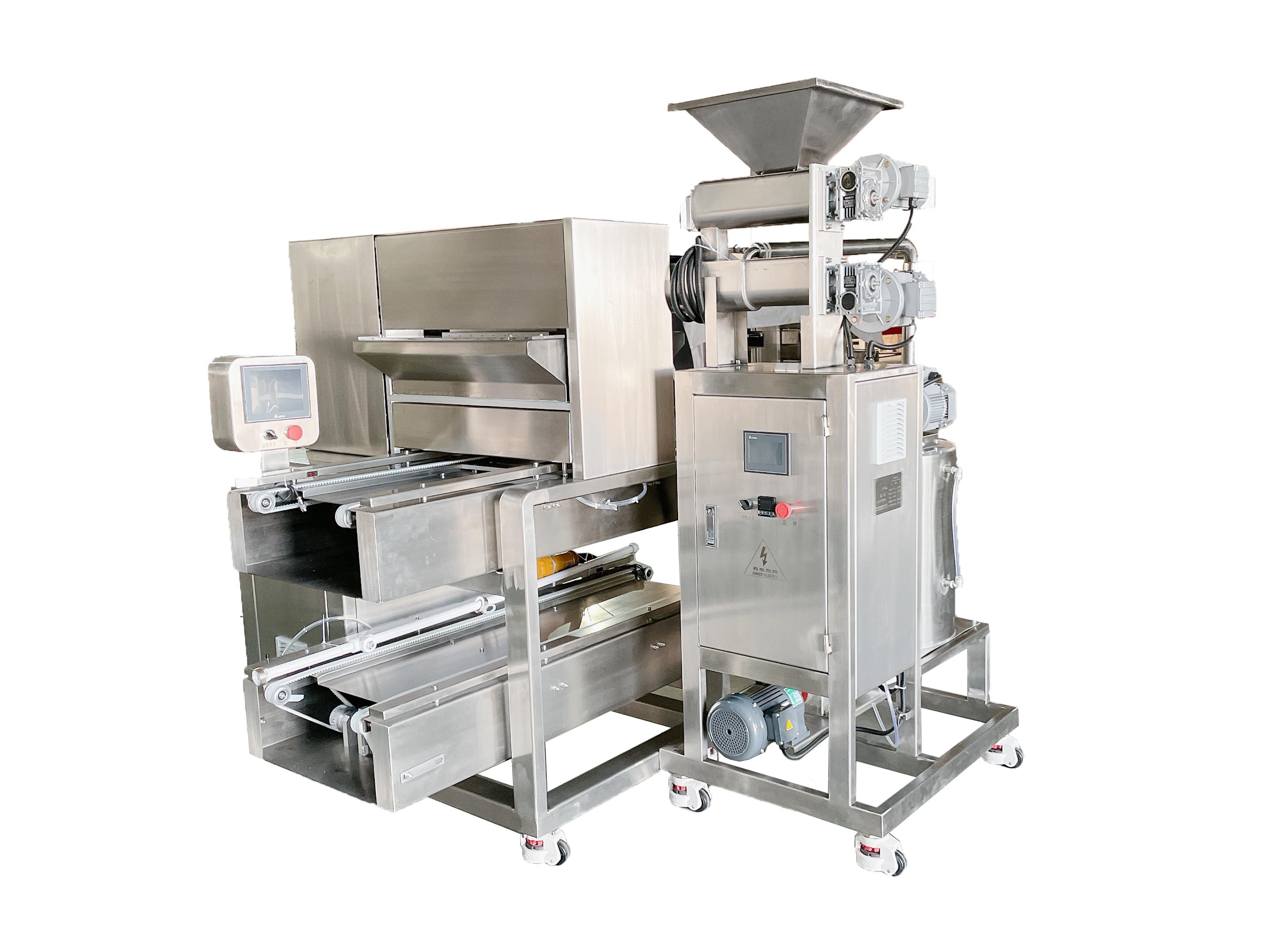

Mixture Depositor & Mixing Machine

■ Suitable for mixing various inclusions, crisp and hard granules, e.g. nut granules, crispy rice etc.

■ The mixture volume ratio up to 50%;

■ Max. diameter of the mixing granule up to 12mm;

■ Liquid level control: Automatically control material delivery according to the liquid level limit;

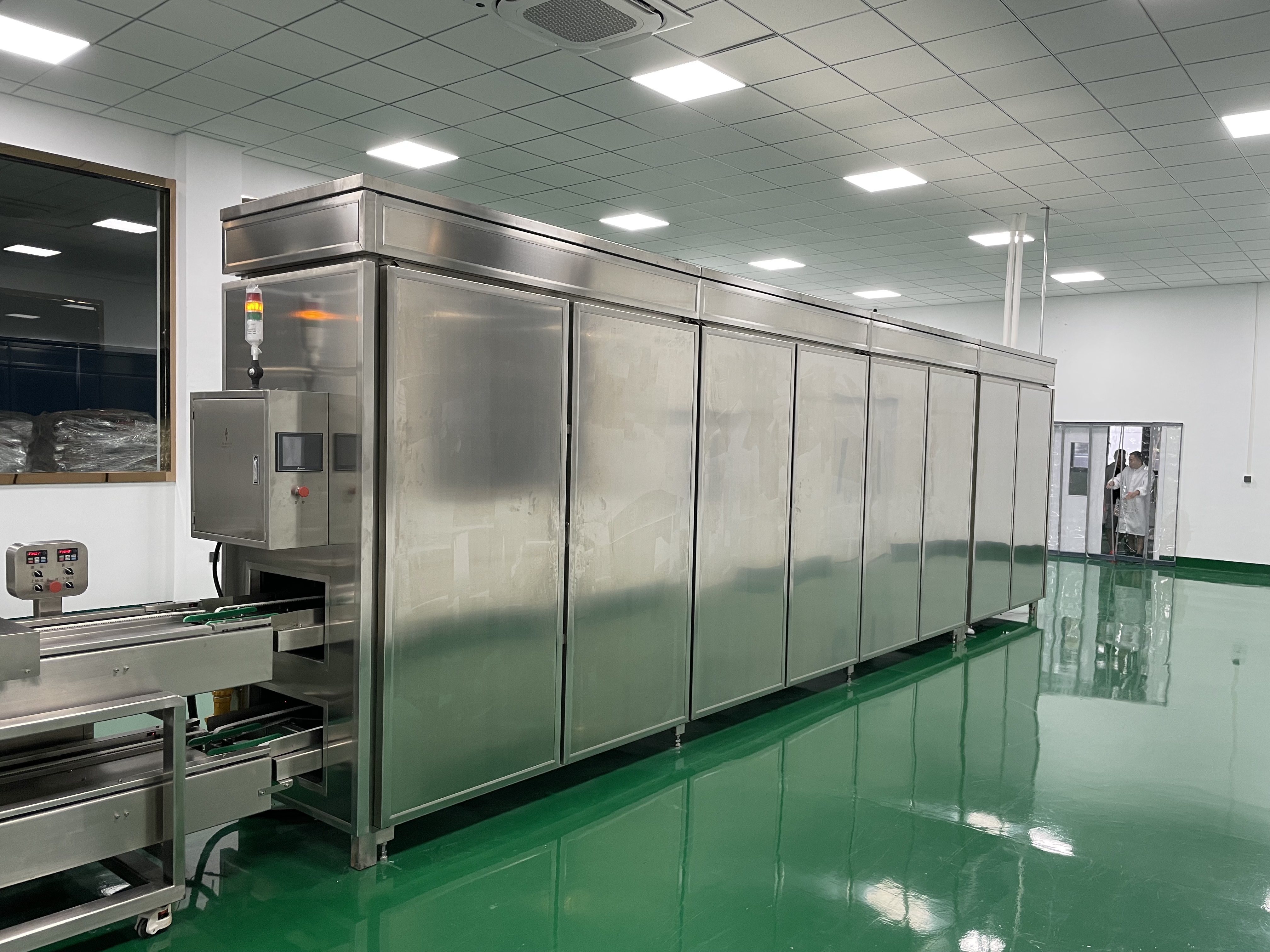

Final Cooling Tunnel

■ Adopt lifting technology, advanced design allows the equipment to adapt to various products heights

■ Good humidity control system, which is suitable for biscuit products production,

■ High efficient, up to 14 molds/min. Excellent cooling system and energy saving.

No. Capacity
(mold/min)
Size(m)      Power
(kW)
Products quantity(pcs)/mold Shapes(pcs)/mold
1 5-7 20.6X1.93X2.56    42.5 Based on product dimension 1-3

Do you want to know what else products can be made on this line?

One shot, 2 colors, bar chocolate can be made by this line only need to change the depositing plate and demolding plate.

Upgrade with more imagination!

With decoration

With lollipop

Even change product type by adding different functional machine

Our modular technology and innovation ability will keep chocolate line advanced for many years.

For more information about the production line, or you want to visit the production process on line. Please contact our export manager.
